drogna

A demonstration harness. Every number in it is invented.

The expensive part of a tick was not the part doing the science

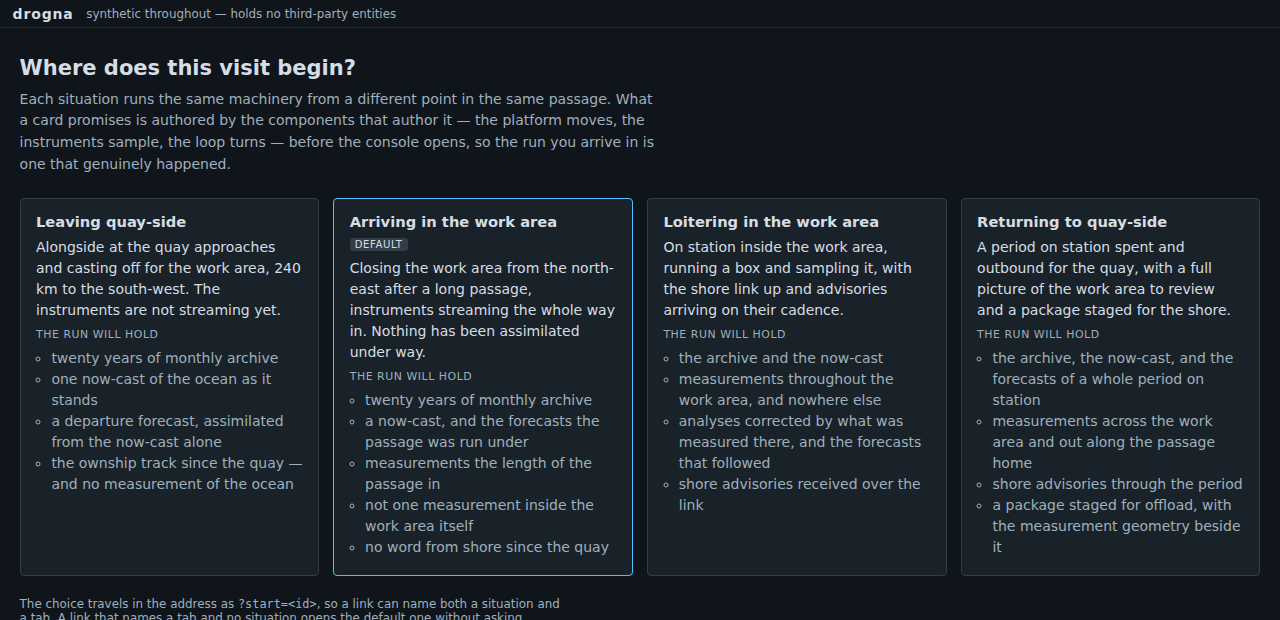

The welcome page: four cards in a row — Leaving quay-side, Arriving in the work area
marked "default", Loitering in the work area, and Returning to quay-side. Each card gives a
sentence about where the vessel is and a short list of what the run will hold, including
"not one measurement inside the work area itself" and "a package staged for
offload".

The background

This simulation opens the same way every time: a vessel that has been at sea for zero seconds. The track, the assimilation, the package for shore — none of it exists until it has been running a while.

The obvious fix is to write plausible data into the stores at startup. We had forbidden that: seeded data must come from the code that produces it live, or the demo is a picture of a system rather than a system.

The requirement

Offer a few situations to begin in — leaving the quay, arriving on task, working the area, heading home — and make each true by actually having run.

The options considered

So the page picks a situation and then plays the simulation forward before showing you anything, through the same controls a user can press by hand.

That took twenty-five seconds, and we guessed wrong twice about where it went. Not the assimilation — matrix algebra looks expensive and cost a second a cycle. It was the route planner, searching for a survey track every ten simulated minutes. Then, with that off, the ocean generator, rebuilding a field every fifteen and having all but the last one discarded.

So the ocean is built once, at build time, and shipped — the thing we had forbidden, unless a check rebuilds it and fails if one byte differs from what the generator would produce now. It compresses to 0.43 MB, and the situations open in 1.5 to 5 seconds.

The demo

Open the welcome page and pick one. Then compare Leaving quay-side with Returning to quay-side in the same tab — same code, same ocean, a different amount of it having happened:

Data, arriving on task · Data, on the way home
