Beat 007: six panels, and the test that was counting instead of measuring

The harness has had an answer since beat 006. This is the beat where a reader can see it: six panels, one per declared horizon, left to right in lead-time order, each stating what instant it is valid for, what it was initialised from, what its skill is against both references, and where its answer came from.

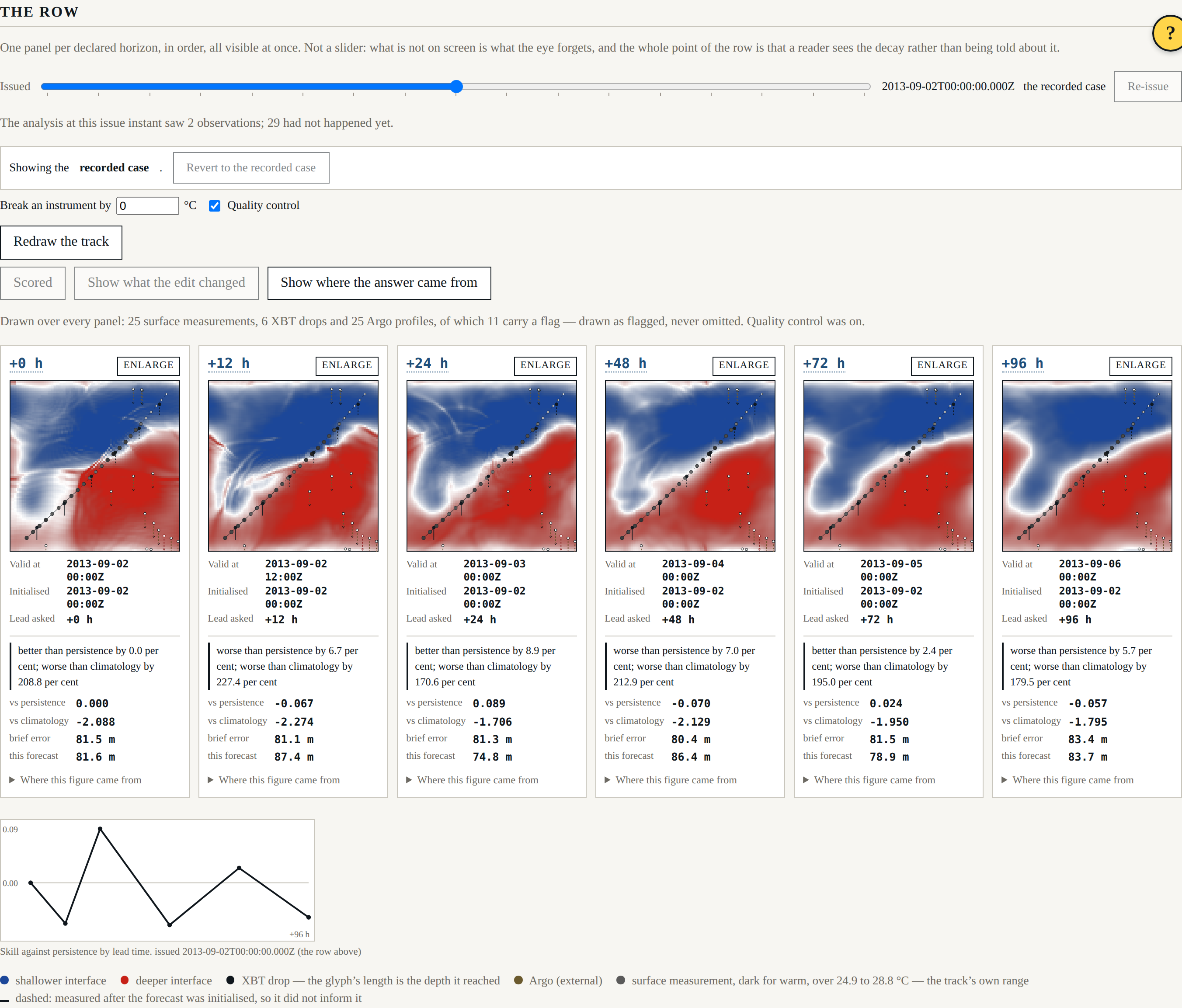

The row: six panels at the declared horizons, each with its absolute instants and both skill figures

Why a row

ADR-0003 records the argument, and it is short. A slider shows one lead time and asks the reader to remember the others; what is not on screen is what the eye forgets, and a claim about a trend delivered one frame at a time is a claim taken on trust — which is the thing this harness exists not to require. A grid loses the axis: lead time is one-dimensional and monotone, and two rows of three invents a second ordering the data does not have while putting +24 h directly above +96 h.

The row keeps the axis and pays for it in panel size. Enlarge in place is the answer to that, and it is deliberately not a modal — an enlargement that hid the row would be a slider with extra steps.

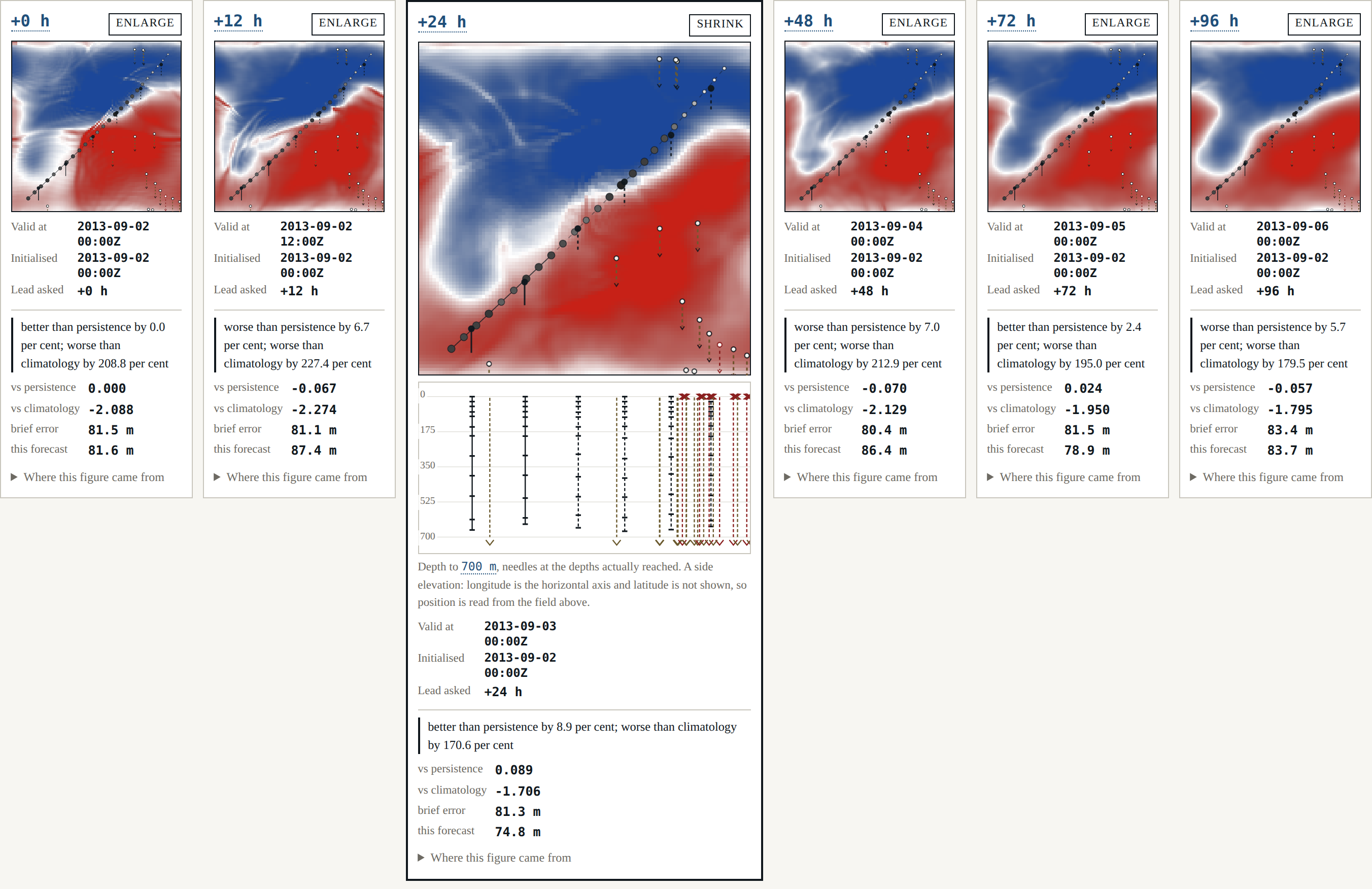

One panel enlarged; the other five stay visible and shrink to their declared minimum

The row passed its tests and did not fit

The first version was tested: six panels, in horizon order, each with its instants and its scores, asserted in a browser. All green. It was also showing four and a half panels.

The page's prose column is 46 rem, six panels at a legible width need about 1 200 px, and the row had quietly become the thing the spec allows only as a last resort — a container that scrolls. The gate that exists for exactly this area, G-05, did not catch it either, and correctly so: G-05 asks whether the rendered horizons are the declared ones, and they were.

The test was asserting membership and order, because those are easy to assert. "All visible at once" is a claim about geometry, and nothing in the suite was measuring geometry.

The fix is not a wider stylesheet. The geometry is now declared —

"presentation": {
  "referenceViewportWidthPx": 1400,
  "minimumPanelWidthPx": 190,
  "panelGapPx": 10,
  "pageGutterPx": 48
}

— handed to the stylesheet as custom properties so that no width is a literal in CSS, and three things now check it:

the schema refuses a configuration whose reference width cannot hold every declared horizon at the declared minimum. Adding a seventh horizon without widening the row is a startup failure with the arithmetic in the message, not a row that silently scrolls;
a browser test sets the window to the declared reference width and measures the rendered boxes: the row may not scroll, every panel must be at least the declared minimum wide and inside its container, and the page may not scroll horizontally at all;
the screenshot above is captured at that same declared width, so a figure in this post cannot show a row that fits when the shell's does not.

That last one matters more than it looks. A documentation site whose figures are captured at a flattering window is a documentation site that will eventually disagree with the product.

The fallback nobody had ever run

FR-010 confines rendering to one module so the choice is cheap to revisit. It uses WebGL2 where it exists and falls back to canvas2d where it does not.

Headless Chromium here has WebGL2 — ANGLE over SwiftShader — so every test took the fast path, and the fallback was code that had never executed anywhere. "A check that has never been seen to fail is worth nothing" cuts both ways: a fallback that has never been seen to run is worth nothing either. So one test refuses getContext('webgl2') in an init script, asserts the surface reports canvas2d, and counts distinct colours to confirm it painted a field rather than a rectangle.

Attribution, and the second channel

Each panel can show where its answer came from: the weight observations carried in every cell, read from the analysis's own attribution and computed nowhere else. Colour alone would not survive a monochrome print, so the cells where observations lead both other sources are hatched — a second channel, in the shader, keyed on the analysis's weights.

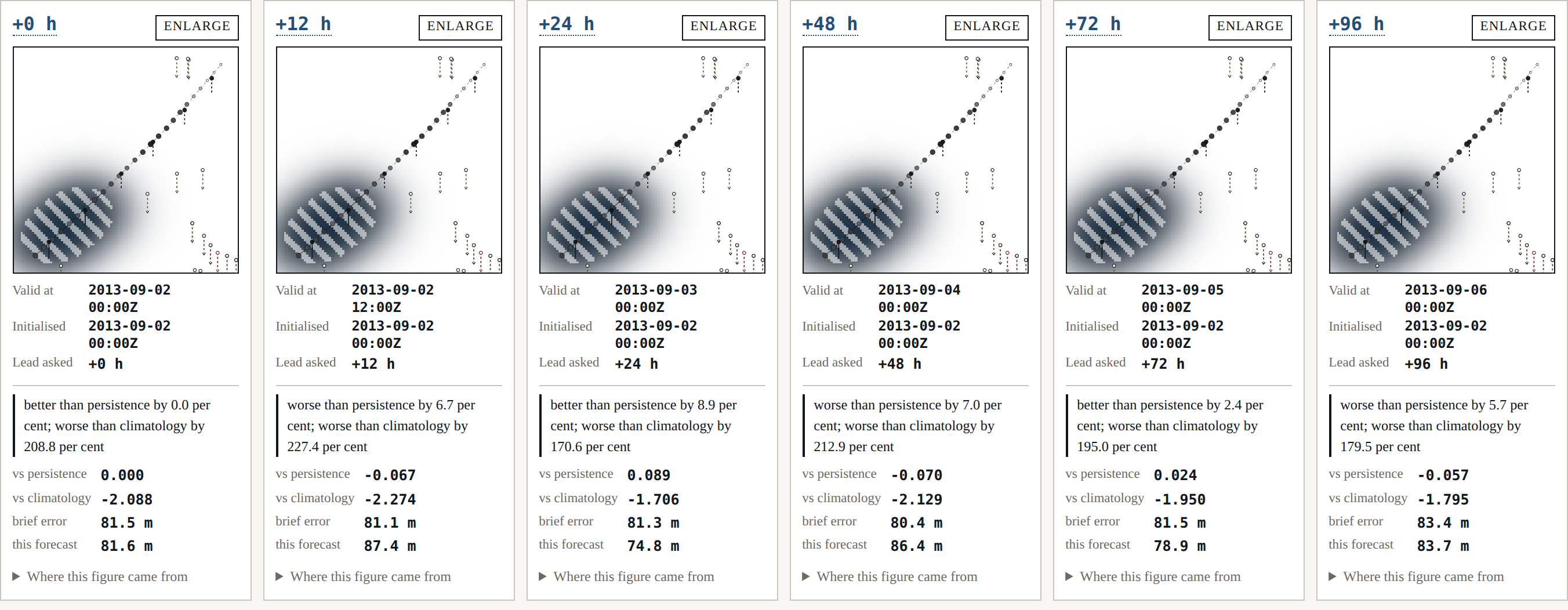

The attribution layer: weight carried by observations, hatched where observations lead

The greyscale claim is measured rather than asserted. A test reads the rendered pixels, takes the luminance of an observed patch and of the unvisited north-west corner, and requires the difference to clear a declared margin of 40 in 255. It measures 150.0.

What this beat could not do, and says so

The spec expects a cell's background and climatology weights to differ between horizons. They cannot yet: the recorded case runs one analysis, at the issue instant, and the row draws that one field on all six panels.

Six identical fields side by side is a picture that implies six analyses. The row therefore says, in the legend, that it is the same field on every panel, names the instant it was analysed at, and says attribution becomes per horizon once the forecast cycles — which is beat 009's job.

The alternative was to synthesise a per-panel attribution by decaying the weights with lead time. It would have looked better and it would have been a figure with no provenance, which Principle V forbids and gate G-06 would have caught on its way in.

Where it stands

Seven gates, eighteen shell tests, nothing deferred — the first beat where pnpm gates reports no gate still waiting for the feature it guards. G-05 runs in a real browser on every run, including its planted violation, which took two attempts: the first plant added an extra horizon to the configuration the page received, and the row rendered seven panels, because it is properly data-driven and does what it is told. Nothing had been planted at all.
